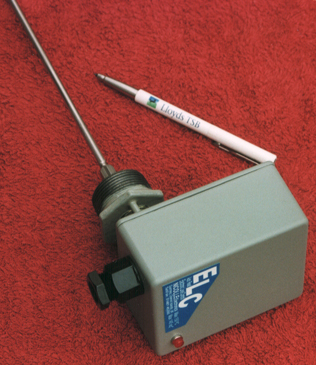

This is the front view of the control, clearly showing the low water lockout neon indicator
To reset the unit after a low level condition, just turn of the mains power for 5seconds
Built in a rugged dycast aluminum case the ELC1 will withstand the most arduous boiler house conditions
We started manufacturing these units in 1972. Of the hundreds of units built in all that time we have only had one failure that was not caused by customer error, or other external forces
Apart from the switching relay there are no moving parts, the resistance of the water is sensed by a cmos logic integrated circuit., that is isolated from the Ac mains by a double wound 12v transformer
Mounting horizontally in the boiler flow via a 1 1/2" dart union is recommended to facilitate annually cleaning of the high quality stainless steel probe. Although this is not strictly necessary, it would need to be done as part of the annual insurance check
Two units would be needed to create a differential level control with high and low water levels, this is easy to impliment using the units 5amp voltage free change over relay contacts
We have also succesfully used this type of control in powdered fertilizers, during the manufacture of peat based growbags
